<< B >> Upper Cover/Transmitter Assembly/Battery/Lower Cover Removal

CAUTION: Do not allow water or dust to enter the inside of the transmitter assembly when it is open. Also, do not touch the precision electronic device.

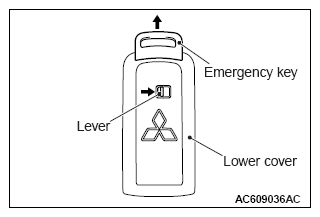

Fig 1: Removing Emergency Key From Keyless Operation Key
G09666322

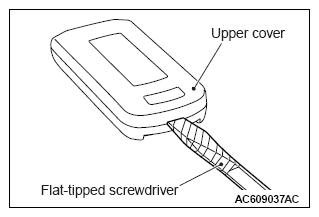

Set a flat-tipped screwdriver wrapped with protective tape as shown in the figure, and pry off the keyless operation key.

Fig 2: Pry Off Keyless Operation Key
G09666323
