Camera Setting

Select "Camera Setting" button on "Service" screen.

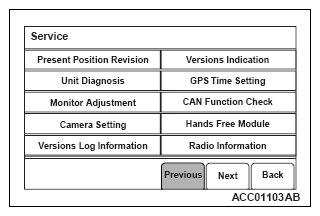

Fig 1: Display Service Screen
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

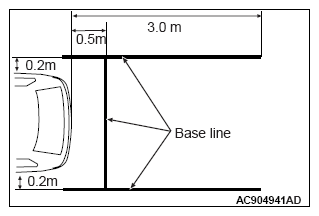

Draw base lines 0.5 m behind the vehicle and width +0.4 m (+0.2 m each for right and left) and align the guide line over the base lines.

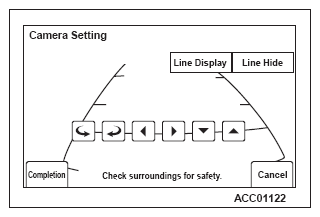

Fig 2: Display Camera Setting Screen
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 3: Display Camera Setting With Specification Screen
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
