SD Card Check

Select "SD Card Check" on "Unit Diagnosis" screen.

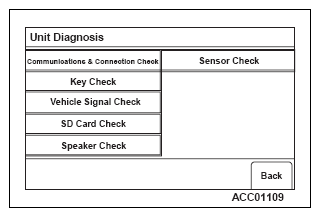

Fig 1: Display Unit Diagnosis Screen (SD Card Check)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
When "Start" button of "Map Slot Check Results" is pressed on "SD Card Check" screen, the SD card which is inserted in the map slot will be checked.
NOTE: When "Start" button is pressed on "USER slot Check Results", the SD card which is inserted in the USER slot will be checked.

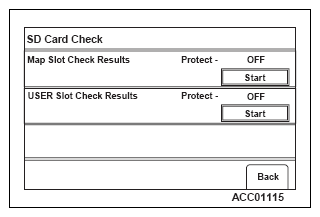

Fig 2: Display SD Card Check Screen
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Check result will be displayed.
- If the check result is OK.

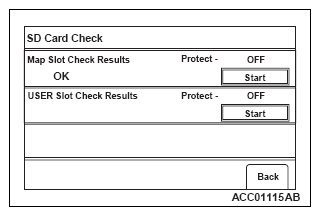

  Fig 3: Display SD Card Check Screen
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
- If the check result is not OK.
  W: Writing check of a dummy file

  R: Reading check of a dummy file

  V: Reference check of a dummy file

  D: Deletion of a dummy file

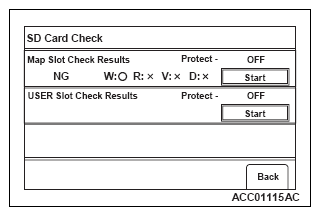

  Fig 4: Display SD Card Check Screen
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
- If no SD card is detected:

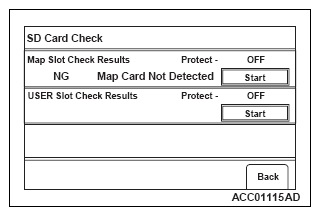

  Fig 5: Display SD Card Check Screen
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
