Sensor Check

Select "Sensor Check" button on "Unit Diagnosis" screen.

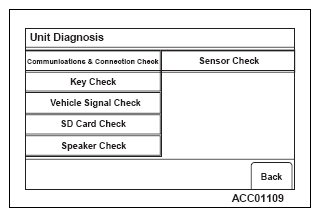

Fig 1: Display Unit Diagnosis For Sensor Check Button Screen
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Press "Start" button on "Sensor Check" screen, and then follow instructions on the screen to operate the vehicle.

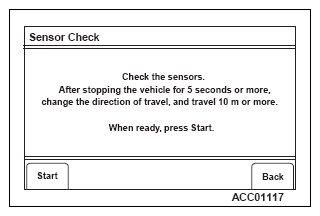

Fig 2: Display Sensor Check Screen
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

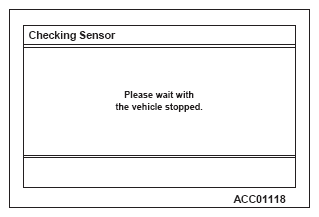

Fig 3: Display Checking Sensor Screen (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

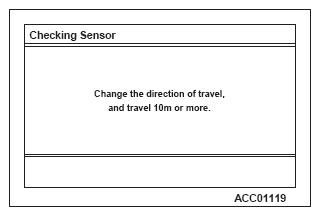

Fig 4: Display Checking Sensor Screen (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Check result will be displayed. If any of the check results is not OK, a NG code will be displayed.

Sensor classification	NG Code No.	Error items
Gyro sensor	1	Offset error while the vehicle is stationary (lower limit error)
	2	Offset error while the vehicle is stationary (upper limit error)
	5	Output error during driving
Speed sensor	6	Output error while the vehicle is stationary

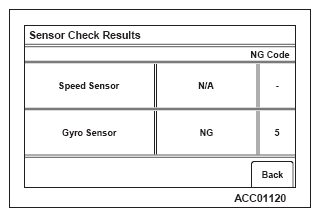

Fig 5: Display Sensor Check Results Screen

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
