CAN Module Memory Data Indication

Select "CAN Module Memory Data Ind" button on "CAN Comm Confirmation" screen.

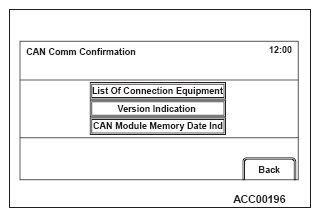

Fig 1: Display CAN Comm Confirmation Screen
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
"CAN Module Memory Data Ind" will be displayed. A respective data will be displayed by selecting each button ("Various Data", "Coding data", "Chrono Stack").

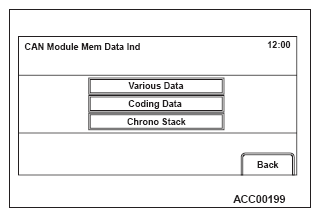

Fig 2: Display CAN Module Mem Data Ind Screen
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
- Select "Various Data."

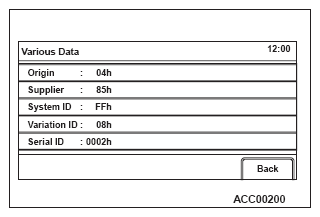

  Fig 3: Display Various Data Screen
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
- Select "Coding Data."

  Fig 4: Display Coding Data Screen (1 Of 2)
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

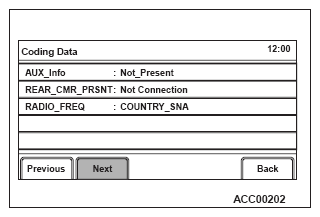

  Fig 5: Display Coding Data Screen (2 Of 2)
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
- Select "Chrono Stack."

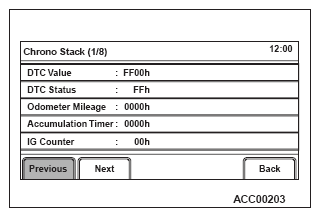

  Fig 6: Display Chrono Stack Screen
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
