CAN Function Check

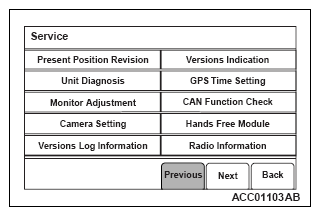

Select "CAN Function Check" on "Service" screen.

Fig 1: Display Service Screen
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Select "CAN Communication Confirmation" on "CAN Function Check" screen.

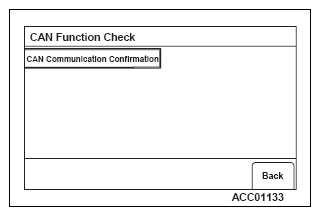

Fig 2: Display CAN Function Check Screen
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Select "List Of Connection Equipment", "Version Indication" or "CAN BOX Memory Data Indication" from "CAN Communication Confirmation" screen.

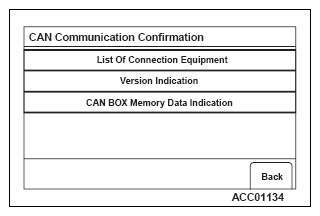

Fig 3: Display CAN Communication Confirmation Screen
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

If "List Of Connection Equipment" is selected on "CAN Communication Confirmation" screen, the system will determine which equipment is installed according to the connected equipment reference table. Then the equipment which are connected to the CAN box unit will be displayed.

Screen indication	Equipment
HVAC	A/C-ECU
FCM	ETACS-ECU
OSS	OSS-ECU
CCN	Combination meter
ETG	Electric liftgate control unit

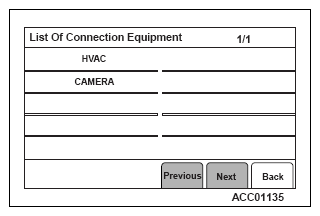

Fig 4: Display List Of Connection Equipment Screen

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

If "Version Indication" is selected on "CAN Communication Confirmation" screen, the version for each item is displayed.

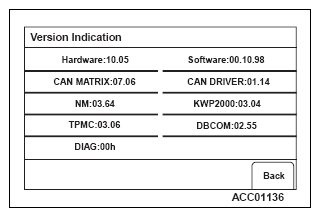

Fig 5: Display List Of Version Indication Screen
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
If "CAN BOX Memory Data Indication" is selected on "CAN Communication Confirmation" screen, "CAN BOX Memory Data Indication" will be displayed.
If any item is selected on "CAN BOX Memory Data Indication" screen, its relevant information is displayed.

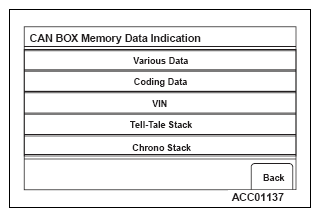

Fig 6: Display CAN BOX Memory Data Indication Screen
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
- Various Data

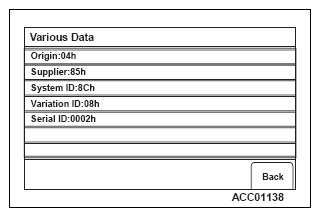

  Fig 7: Display Various Data Screen
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

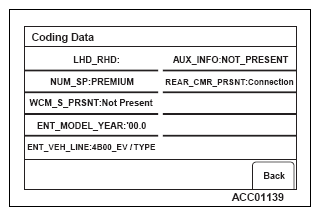

- Coding Data

  Fig 8: Display Coding Data Screen
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
- Chrono Stack

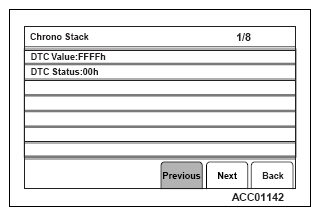

  Fig 9: Display Chrono Stack Screen
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
