GPS Time Setting

  1. "GPS Time" screen will be displayed by selecting "GPS Time Setting" button on "Service" screen.
  2. Select "Set" button.

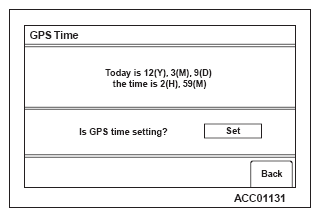

    Fig 1: Display GPS Time Screen
    G09667193Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. Set your local time on "GPS Time Setting" screen, and then select "Set" button.

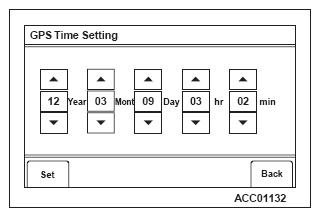

    Fig 2: Display GPS Time Setting Screen
    G09667194Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
