Service Data Log

Select "Service Data Log" button on "Log Function" screen.

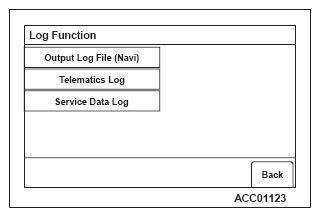

Fig 1: Display Log Function Screen
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

The logs are displayed from the latest one.

NOTE:

Eleven error logs will be backed up in maximum.
All backed-up error logs will be erased by selecting "Delete" button.

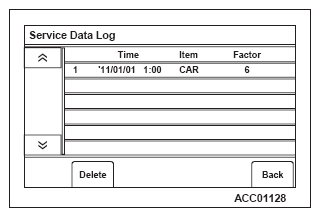

Fig 2: Display Service Data Log Screen

G09667190

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Item	Factor number	Produced log
Drive	1	Log concerning focus
	2	Log concerning disc type
	3	Log concerning disc
	4	Log concerning high temperature
	241	Log concerning loading/eject operation
	248	Log concerning power-On
Monitor	1	Log concerning high temperature
SD	1	Log concerning high temperature
SD	2	Log concerning low temperature
SP	3, 5, 7, 9, 10-15	Log concerning number of speakers unexpected
CAR	3-255	Log concerning vehicle model unexpected
