Vehicle Signal Check

Select "Vehicle Signal Check" on "Unit Diagnosis" screen.

Fig 1: Display Unit Diagnosis Screen (Vehicle Signal Check)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
The current status of vehicle signal will be displayed.
- "Speed": "ON" when the vehicle speed is 5 km/h or more, and "OFF" when the vehicle speed is 3 km/h or less.
- "ILL": "ON" when the lighting switch is on (the taillights or the headlights are ON), and "OFF" when the taillights or the headlights are OFF.
- "Shift Position R": "ON" when the selector lever is at R position, and "OFF" when it is at the other position.

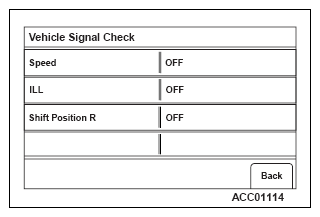

  Fig 2: Display Vehicle Signal Check Screen
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
