Steering Wheel Audio Remote Control Switch Check: Notes

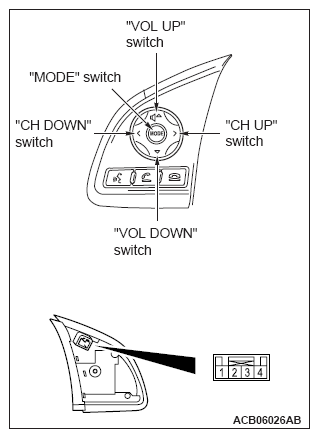

Fig 1: Identifying Steering Wheel Audio Remote Control Switch Connector Terminal

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Switch Position	Tester Connection	Measurement Value
"MODE" switch pushed	1 - 2	Approximately 270 Ω
"CH UP" switch pushed		Approximately 740 Ω
"CH DOWN" switch pushed		Approximately 1.3 kΩ
"VOL UP" switch pushed		Approximately 2.1 kΩ
"VOL DOWN" switch pushed		Approximately 3.1 kΩ
