Key Reminder Switch Check

With the key reminder switch mounted to the vehicle, disconnect the key reminder switch connection connector, and then perform the continuity check.

Key status	Terminal number	Normal condition
Key removed	4 - 6	Continuity exists (2 ohms or less)
Key inserted	4 - 6	No continuity

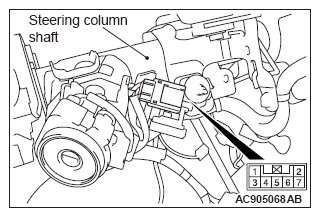

Fig 1: Identifying Key Reminder Switch Connector Terminals

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
