Clock Spring

If any malfunction is found in the following inspections, replace the clock spring with a new one.

1. Check the connectors and protective tubes for damage and the terminal for deformation.
2. Check the case for damage.
3. Check that the continuity exists between the following connector terminals.
   • Clock spring connector terminal 1 and horn connector terminal 1
   • Clock spring connector terminal 5 and horn connector terminal 5

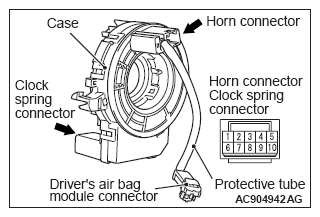

     Fig 1: Identifying Horn Connector And Clock Spring Connector Terminals

     Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
4. As shown in the Figure, connect the circuit tester to special tool extra fine probe (MB992006) and check to see that there is a charge between the terminals.

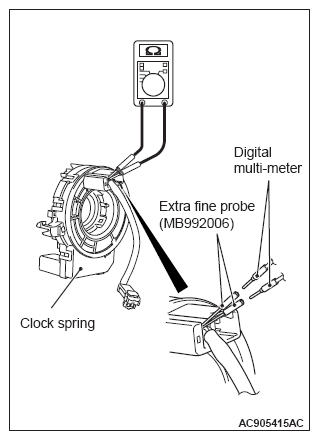

   Fig 2: Checking Clock Spring

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
