Driver's Air Bag Module
WARNING:
Never attempt to measure the circuit resistance of the air bag modules (squib), even if you are using the specified tester. If the circuit resistance is measured with a tester, accidental air bag deployment will result, and possible serious personal injury.
WARNING:
If any component damage is found during the following inspection, replace the air bag module with a new one. Dispose of the old one according to the specified procedure (Refer to PASSENGER'S AIR BAG ON/OFF INDICATOR LIGHT
).
If any malfunction is found in the following inspections, replace the air bag module with a new one.
- Pad cover dent, crack or deformation
- Check the harness and connector for damage and the terminal for deformation.

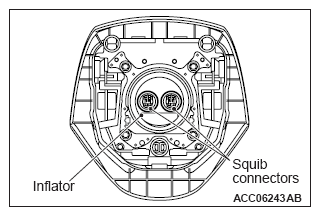

- Check the air bag inflator cases for dents, cracks or deformation.
- Check the air bag module for proper installation.
