>> C << Steering Wheel Assembly Installation

CAUTION: When installing the steering wheel assembly, do not trap the clock spring harness.
  1. After checking that the clock spring center alignment is already performed, install the steering wheel assembly so that its boss part is aligned with the rib of the clock spring slowly.
  2. After the installation, check that there is no abnormality when the steering wheel is fully turned to left and right.

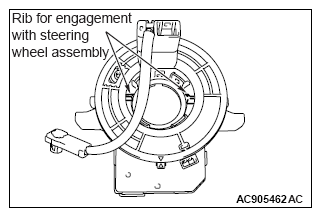

    Fig 1: Identifying Steering Wheel Assembly Ribs
    G09666768Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
