Removal And Installation: Notes

WARNING:
  • Never attempt to disassemble or repair the occupant classification sensor. If faulty, replace it.
  • Do not drop or subject the occupant classification sensor to impact or vibration. Replace the occupant classification sensor, if dents, cracking, deformation, or rust are present.
CAUTION:
  • Always replace the front seat cushion cover and pad assembly together with the occupant classification-ECU.

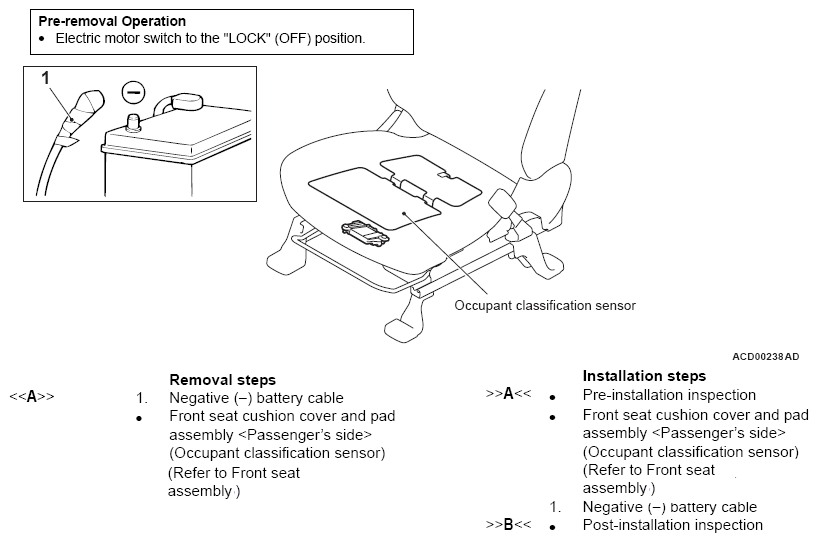

Fig 1: Removing/Installing Occupant Classification Sensor
G09666801Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
