Front Seat Assembly (With Built-In Side Air Bag Module)

  1. Check that the side-airbag module deployment part of the seat is normal.
  2. Check the connector for damage, the terminal for deformation, and the harness for binding.

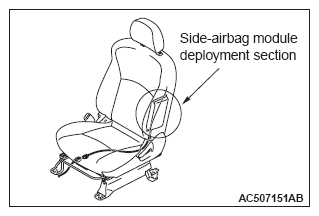

    Fig 1: Identifying Side-Airbag Module Deployment Section
    G09666741Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
