Occupant Classification-Ecu And Occupant Classification Sensor

  1. Check the occupant classification-ECU case and occupant classification sensor for dents, cracks or deformation.
  2. Check the connector for damage, and the terminals for deformation.
  3. Check the installation of the occupant classification-ECU and occupant classification sensor.
  4. Check the diagnostic trouble code of occupant classification-ECU and replace the seat cushion frame assembly < passenger's side >.

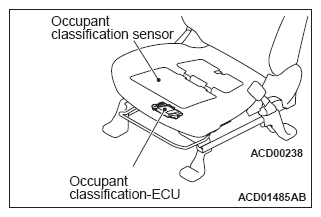

    Fig 1: Identifying Occupant Classification-ECU And Occupant Classification Sensor
    G09666746Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
