>> A << Mechanical Steering Lock < Vehicles Without Kos >/Electric Steering Lock < Vehicle With Kos >/Steering Lock Bracket/Steering Lock Bolt Installation

Secure the steering lock bracket to the steering lock with steering lock bolt (Upper). Tighten the steering lock bolt until its head is broken off.
Insert the steering lock into the tip of the column shaft, fit the protrusion of the steering lock to the hole of the steering column shaft assembly, install the steering lock and tighten the steering lock bolt (lower) until its head is broken off.

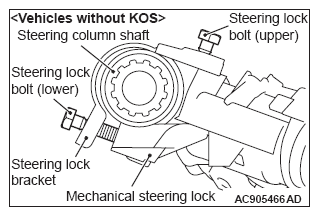

Fig 1: Installing Steering Lock Bolt (Vehicles Without KOS)

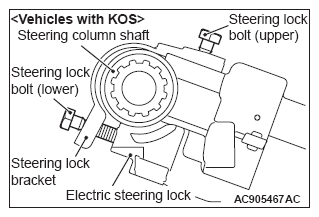

Fig 2: Installing Steering Lock Bolt (Vehicles With KOS)

CAUTION: For the mechanical steering lock, make sure that the body side wiring harness connector to the steering lock solenoid connector. (Do not connect it to the steering lock solenoid dummy connector).

Fig 3: Identifying Ignition Switch, Steering Lock Solenoid And Connector
