>> B << Steering Column Bolt (Steering Column Shaft Assembly And Steering Gear & Linkage Connection) Installation

Insert the steering column bolt into the non-threaded bolt hole, and tighten it to the specified torque.

Tightening torque: 36 ± 6 N.m (27 ± 4 ft-lb)

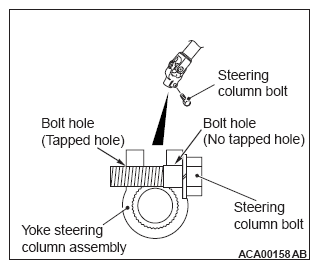

Fig 1: Removing/Installing Steering Column With Torque Specification
G09666066
