CVT Control Relay Check

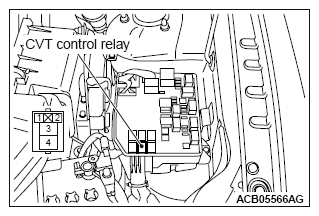

- Remove the CVT control relay.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
- Use a jumper wire to connect the positive battery terminal (+) to the CVT control relay terminal No.2, and the negative battery terminal (-) to the terminal No.1.
- Check for continuity between the CVT control relay terminals No.3 and No.4.
| Jumper wire |
Continuity between terminals No.3 and No.4 |
| Connect |
Yes (2 Ω or less) |
| Disconnect |
No |
- If not as specified, replace the CVT control relay.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
