Control System Component Part Configuration Diagram

Name	Symbol
AWC-ECU < Vehicles with S-AWC >	F
CVT assembly connector	E
CVT control relay	B
Data link connector	H
Paddle shift switch	G
Primary pulley speed sensor	D
Secondary pulley speed sensor	A
Selector lever assembly (incorporating shift lock solenoid)	I
Transaxle control module (TCM)	F
Transmission range switch	C

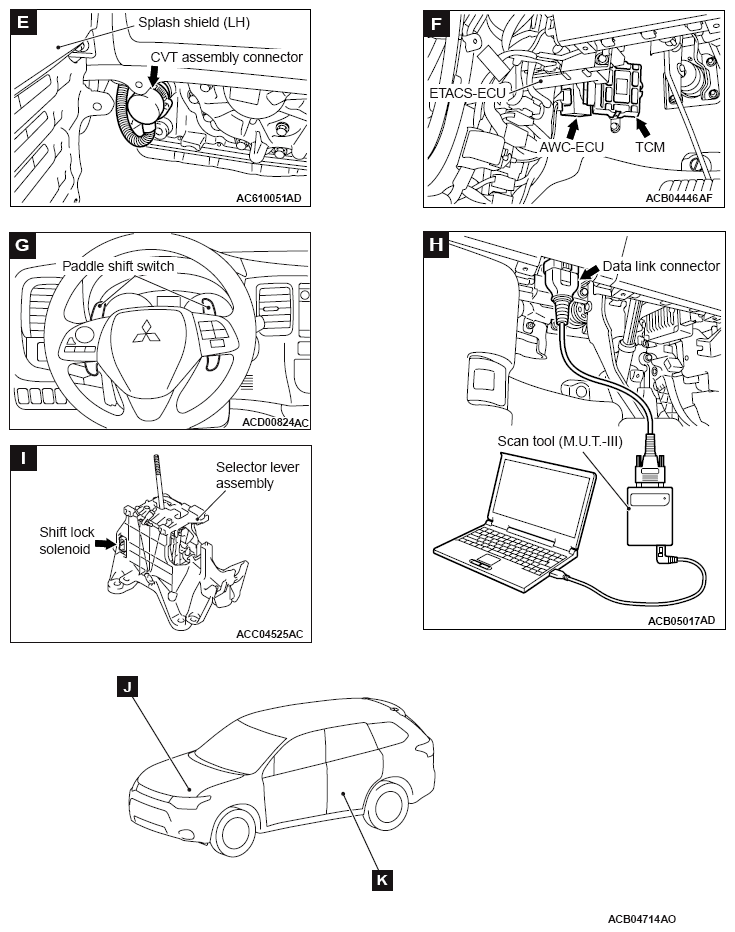

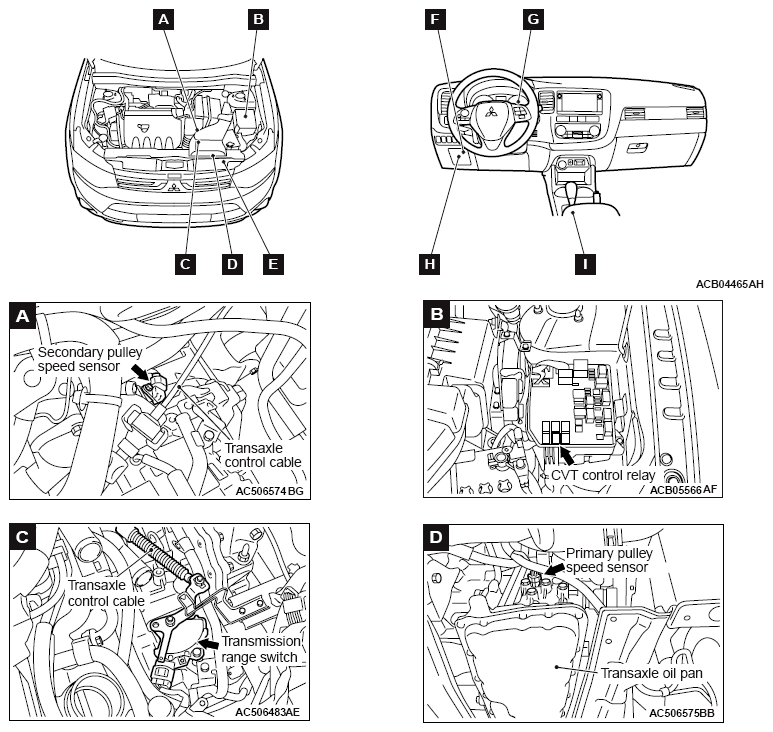

Fig 1: Identifying Control System Components

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Identifying Electronic Control Coupling

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Name	Symbol
Electronic control coupling (front) < Vehicles with S-AWC >	J
Electronic control coupling (center) < Vehicles with S-AWC >	K

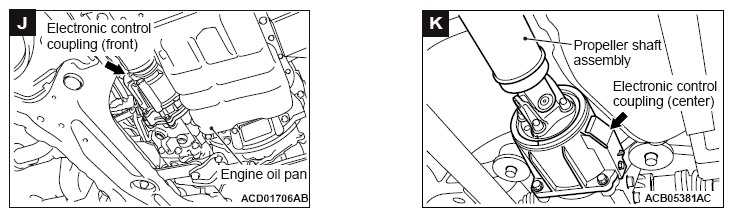

Fig 3: Locating Electronic Control Coupling

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
