Removal And Installation: Notes

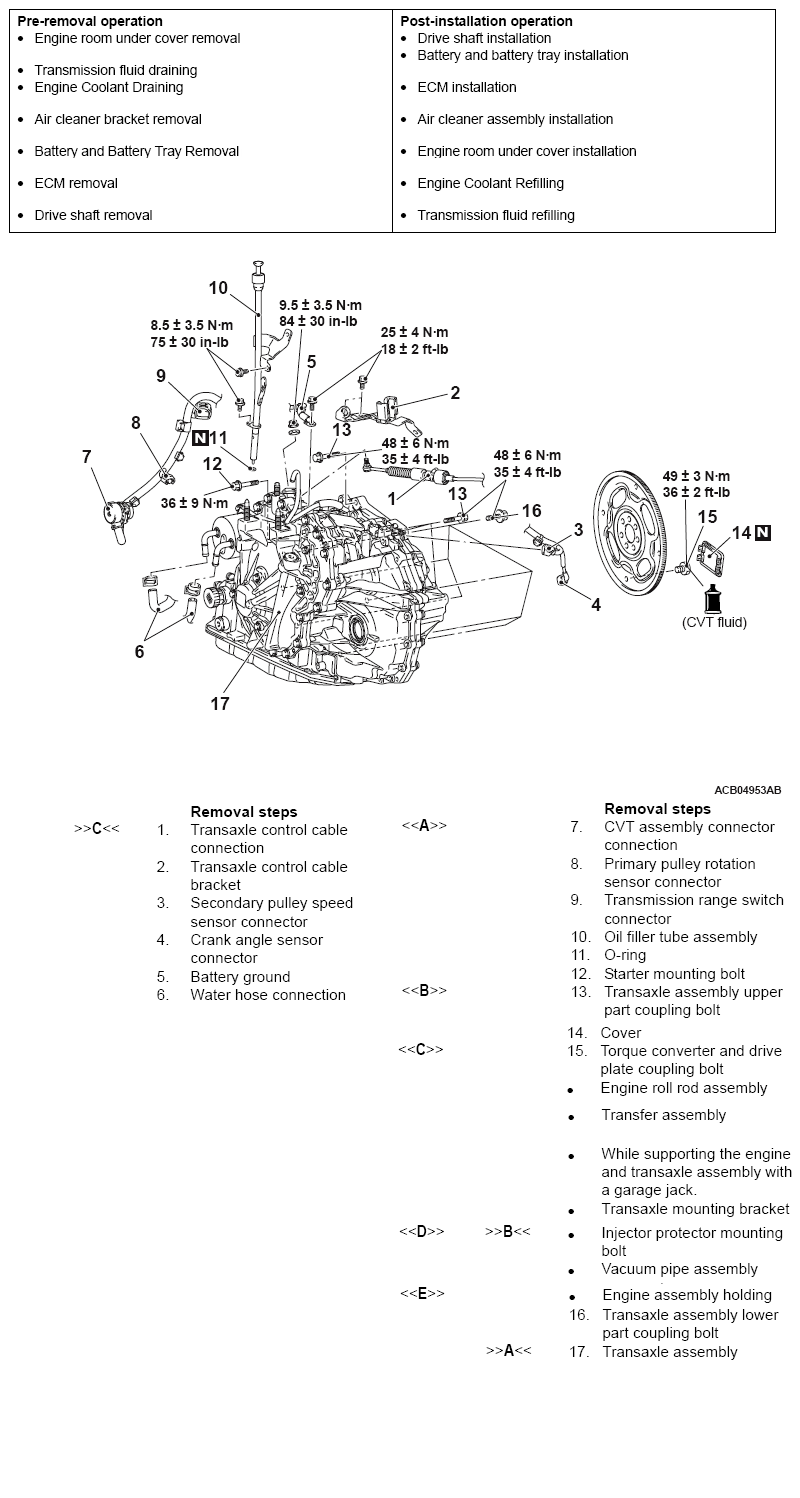

Fig 1: Removing/Installing Transaxle Assembly With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MB991454: Engine Hanger Balancer
• MB991527: Engine Hanger
• MB991895: Engine Hanger
• MB991928: Engine Hanger
• MB991932: Foot
• MB992853: Engine hanger plate
• MB992906: Engine hanger attachment
