<< A >> CVT Assembly Connector Disconnection

While pressing A in the figure, turn B counterclockwise to unlock the CVT assembly connector, and disconnect the connector.

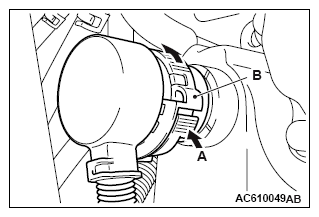

Fig 1: Disconnecting CVT Assembly Connector
G09664958Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
