<< E >> Engine Assembly Holding

Tighten the engine hanger plate (special tool: MB992853) to the specified torque at A in the figure (injector protector rear mounting bolt) and B in the figure (vacuum pipe assembly mounting bolt).
Tightening torque (A in the figure): 20 ± 2 N.m (15 ± 1 ft-lb)

Tightening torque (B in the figure): 11 ± 1 N.m (97 ± 8 in-lb)

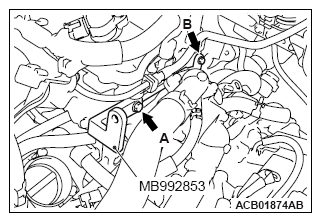

Fig 1: Tightening Engine Hanger Plate (Special Tool MB992853)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Assemble the engine hanger (special tool: MB991527) with the chain of the engine hanger balancer (special tool: MB991454).

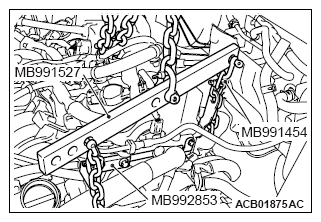

Fig 2: Assembling Engine Hanger (Special Tool MB991527)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
< When engine hanger (Special tool: MB991928) is used >
1. Assemble the engine hanger (Special tool: MB991928). (Set the components below to the base hanger.)
  - Slide bracket (HI)
  - Foot x 4 (standard) (MB991932)
2. Set the feet of the special tool as shown in the figure.
  NOTE: Adjust the engine hanger balance by sliding the slide bracket (HI).

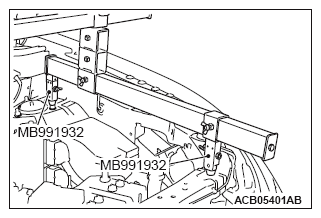

  Fig 3: Adjusting Engine Hanger Balance
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. Connect the engine hanger (Special tool: MB991928) to the engine hanger (special tool: MB991527). Remove the garage jack and then remove the transaxle assembly upper part coupling bolts that have been loosened previously.

  Fig 4: Connecting Engine Hanger (Special Tool MB991928) To Engine Hanger (Special Tool MB991527)
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
< When engine hanger (Special tool: MB991895) and engine hanger attachment (Special tool: MB992906) are used >
1. Set the foot of special tool engine hanger (MB991895) as shown in the figure.
  NOTE: Slide the front foot of special tool engine hanger attachment (Special tool: MB992906) to balance the engine hanger.

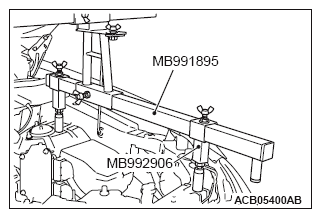

  Fig 5: Sliding Special Tool Front Foot Engine Hanger Attachment (MB992906)
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Connect the engine hanger (Special tool: MB991895) to the engine hanger (special tool: MB991527). Remove the garage jack and then remove the transaxle assembly upper part coupling bolts that have been loosened previously.

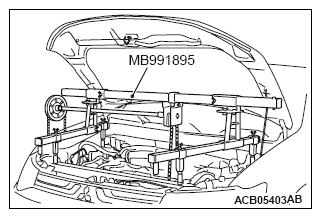

  Fig 6: Connecting Engine Hanger (Special Tool MB991895) To Engine Hanger (Special Tool MB991527)
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
