Switch Check

Item Selector lever position Terminal number Continuity
P position detect switch < Vehicles with KOS > P 4 - 6 No continuity
Other than above 4 - 6 Continuity
P position detect switch < Vehicles without KOS > P 5 - 6 No continuity
Other than above 5 - 6 Continuity
Ds position switch < Vehicles without paddle shift > Ds, L 8 - 9 Continuity
Other than above 8 - 9 No continuity

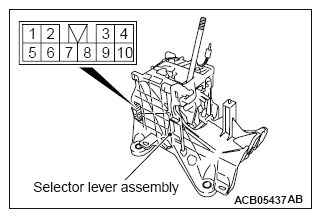

Fig 1: Identifying Selector Lever Assembly Connector Pins
G09664956Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
