Reduction Gear Sub-Assembly: Assembly: Notes

CAUTION: The reduction gear sub-assembly can only be assembled, not disassembled.

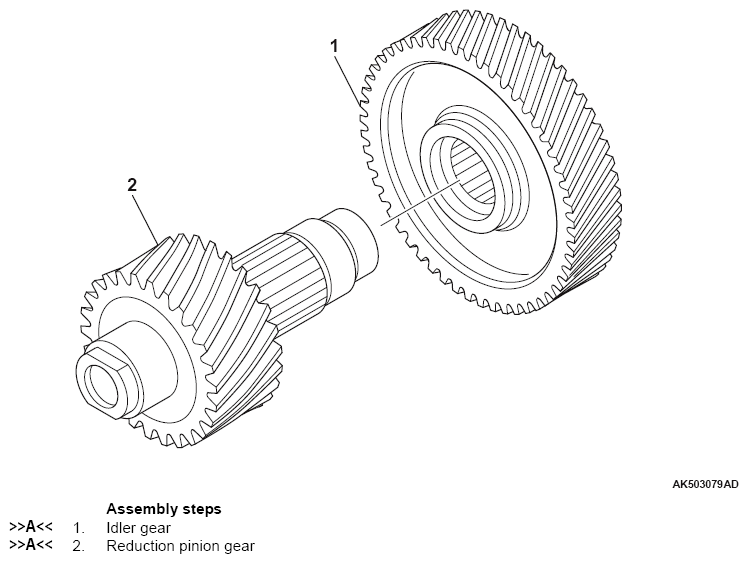

Fig 1: Identifying Idler Gear And Reduction Pinion Gear
G09665193

Required special tools:
