>> A << Regulator Assembly Installation

After installing the regulator assembly, insert a piece of wire through the hole in the rear bracket while pressing the brush to keep the brush against movement.

NOTE: Holding the brush with the wire facilities installation of the rotor.

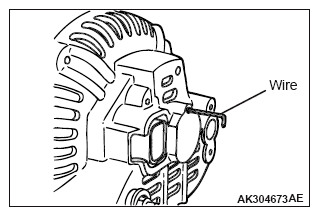

Fig 1: Identifying Brush Holding Wire

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

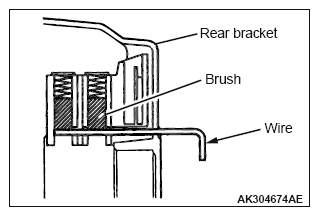

Fig 2: Identifying Regulator Assembly Wire, Brush And Rear Bracket

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
