INSPECTION - 2.4L Engine: Stator

Check the electrical continuity of the points shown in the chart below. Confirm that there is electrical continuity.

If there is not, replace the stator.

Terminal connector of tester	Electrical continuity
1 - 2	Presence of electrical continuity
1 - 3
2 - 3
4 - 5
4 - 6
5 - 6

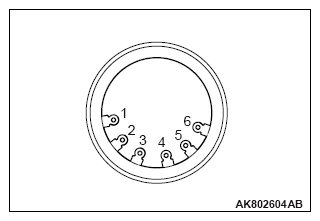

Fig 1: Identifying Stator Coil Terminals

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Check the electrical continuity of the points shown in the chart below. Confirm that there is not electrical continuity.

If there is, replace the stator.

Terminal connector of tester	Electrical continuity
1 - Core	Absence of electrical continuity
2 - Core
3 - Core
4 - Core
5 - Core
6 - Core

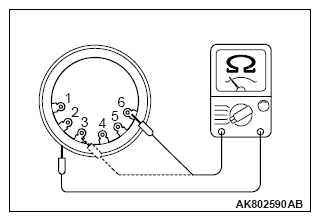

Fig 2: Checking Stator Electrical Continuity (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Check the insulation between coil terminals of each group.
Check the electrical continuity of the points shown in the chart below. Confirm that there is not electrical continuity.
If there is, replace the stator.

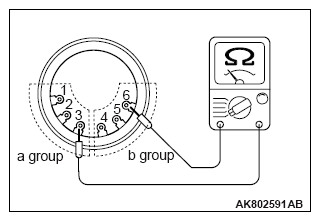

Fig 3: Checking Stator Electrical Continuity (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal connector of tester	Electrical continuity
1 - 4	Absence of electrical continuity
1 - 5
1 - 6
2 - 4
2 - 5
2 - 6
3 - 4
3 - 5
3 - 6
