Special Tool

TOOL	TOOL NUMBER AND NAME	SUPERSESSION	APPLICATION

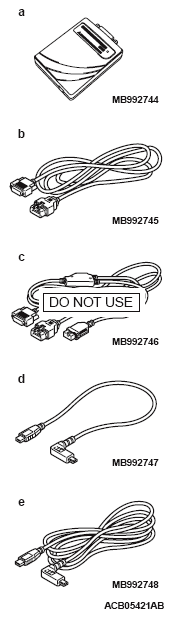

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB992744 Vehicle communication interface-Lite (V.C.I.-Lite) MB992745 V.C.I.-Lite main harness A (for vehicles with CAN communication) MB992746 V.C.I.-Lite main harness B (for vehicles without CAN communication) MB992747 V.C.I.-Lite USB cable short MB992748 V.C.I.-Lite USB cable long	-	Checking of engine speed

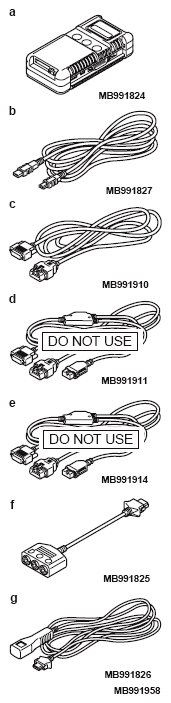

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB991958 Scan tool (M.U.T.-III sub assembly) MB991824 Vehicle communication interface (V.C.I.) MB991827 M.U.T.-III USB cable MB991910 M.U.T.-III main harness A (Vehicles with CAN communication system) MB991911 M.U.T.-III main harness B (Vehicles without CAN communication system) MB991914 M.U.T.-III main harness C (for Chrysler models only) MB991825 M.U.T.-III adapter harness MB991826 M.U.T.-III trigger harness	MB991824-KIT NOTE: MB991826 M.U.T.-III Trigger Harness is not necessary when pushing V.C.I. ENTER key.	Checking of engine speed CAUTION: For vehicles with CAN communication, use M.U.T.-III main harness A to send simulated vehicle speed. If you connect M.U.T.-III main harness B instead, the CAN communication does not function correctly.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB991519 Generator harness connector	MIT530 Micrd 530 charging system tester.	Checking of generator ("S" terminal voltage)
