Disassembly And Assembly - Fwd: Notes

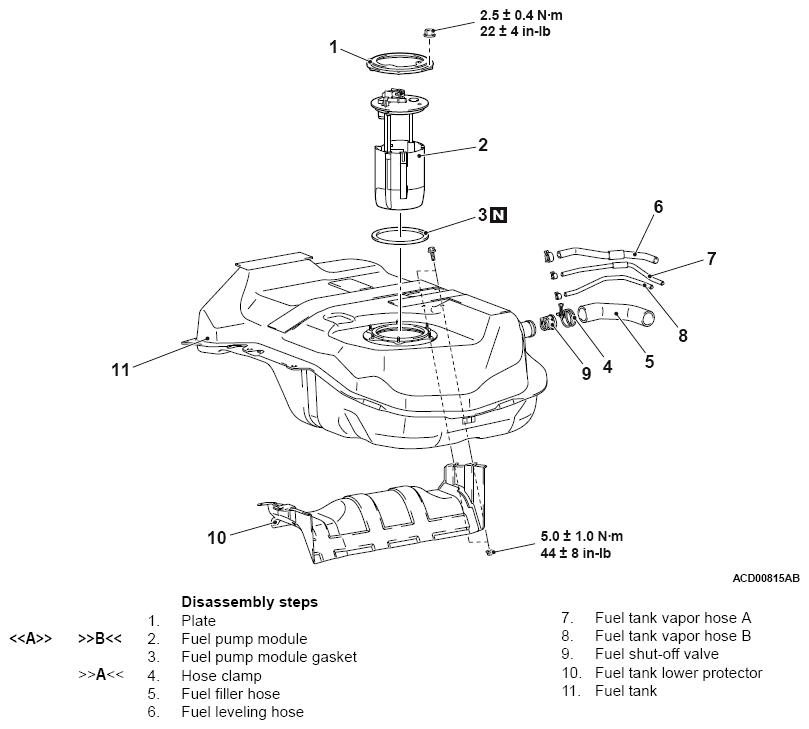

Fig 1: Disassembling/Assembling Fuel Tank Assembly With Torque Specification - FWD
G09664586Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
