Removal And Installation: Notes

CAUTION: For the removal of the headlining, refer to SERVICE PRECAUTIONS and CURTAIN AIR BAG MODULE .

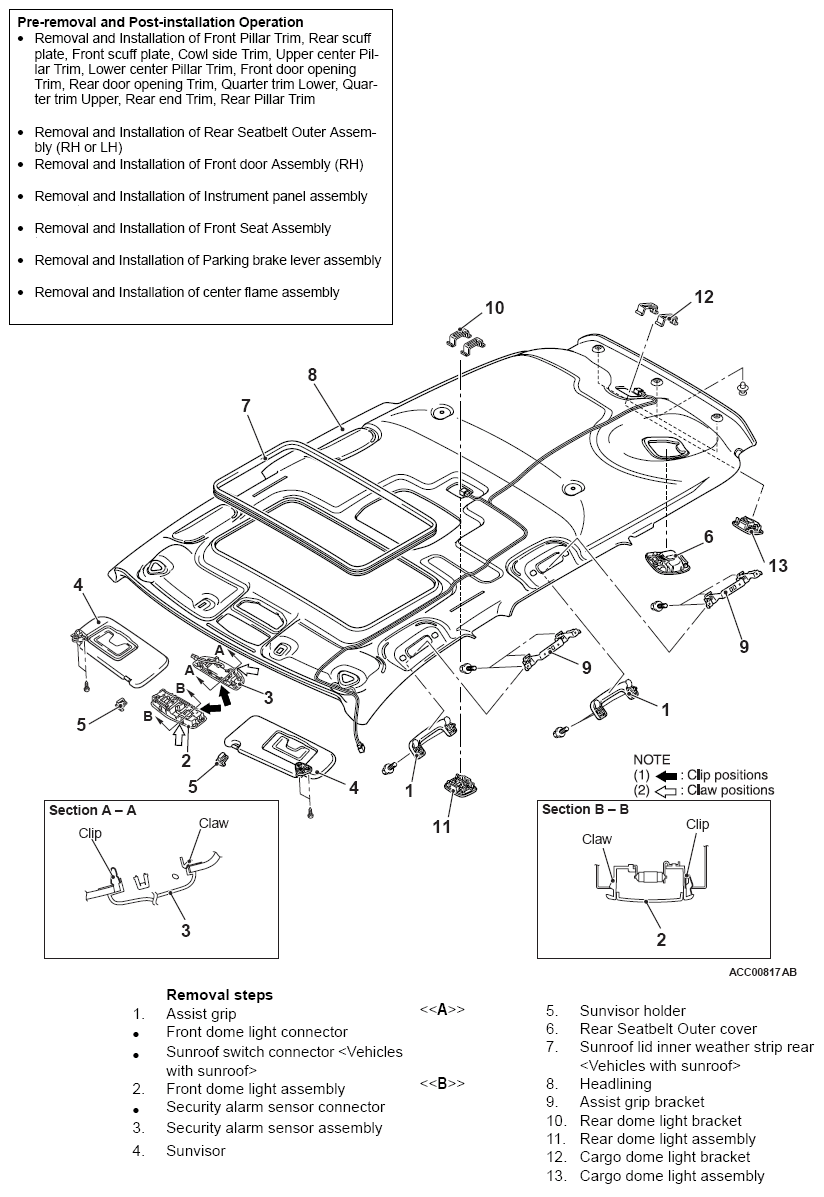

Fig 1: Removing/Installing Headlining

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
