One-Touch Start System Valid Area: Notes

The one-touch start system can be activated by the pressing of engine switch only when the keyless operation key is located within the inside antenna receiving area.

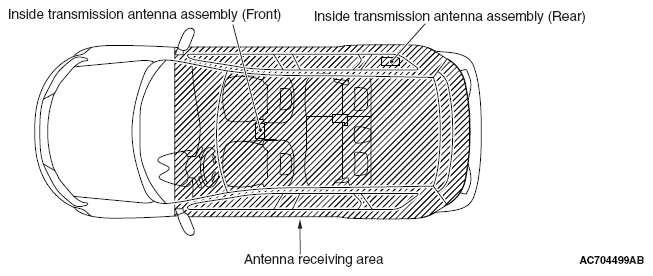

Fig 1: Identifying Inside Transmission Antenna Assembly And Antenna Receiving Area
G09635342Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE: If the keyless operation key battery is discharged, the one-touch start system (power supply changeover, engine start/stop) becomes available when the keyless operation key is inserted into the key slot located in the glove box. When inserting the keyless operation key to the key slot, easy locking of the key can be performed by inserting the key from the emergency key side.

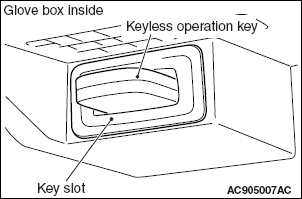

Fig 2: Identifying Keyless Operation Key And Key Slot
G09670770Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
