>> B << TPMS Transmitter Installation

CAUTION: Do not attempt to install the TPMS transmitter without depressing the portion indicated by the arrow.

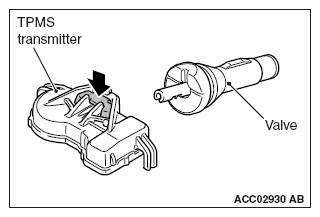

Fig 1: Locating Valve Projection

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Install the TPMS transmitter into the valve while depressing the portion indicated by the arrow.
CAUTION: Make sure that the TPMS transmitter and the valve are installed securely.
Pull the TPMS transmitter from the valve by hand to make sure it is secure.

Fig 2: Removing TPMS Transmitter From Valve
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: If the TPMS transmitter is disconnected from the valve, the tab securing the TPMS transmitter to the valve may be broken.
