>> A << Valve Installation

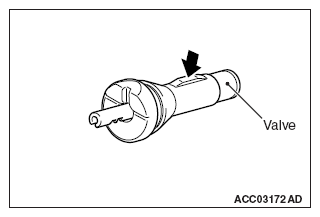

  1. The projection shown by the arrow should face towards the outside of the wheel.
    Fig 1: Locating Valve Projection
    G09671054Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
