Sensor Check

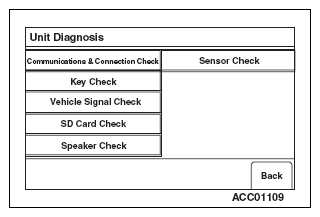

Select "Sensor Check" button on "Unit Diagnosis" screen.

Fig 1: Display - Sensor Check Screen
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Press "Start" button on "Sensor Check" screen, and then follow instructions on the screen to operate the vehicle.

Fig 2: Display - Sensor Checking Start Screen
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 3: Display - Sensor Check Processing Screen
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 4: Display - Travel Direction Checking Screen
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Check result will be displayed. If any of the check results is not OK, a NG code will be displayed.

Fig 5: Display - Sensor Check Result Screen

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Sensor classification	NG Code No.	Error items
Gyro sensor	1	Offset error while the vehicle is stationary (lower limit error)
	2	Offset error while the vehicle is stationary (upper limit error)
	5	Output error during driving
Speed sensor	6	Output error while the vehicle is stationary
