>> A << Column Switch Assembly Installation

When installing a new column switch

• With the retaining pin of the band clump pin installed, install the column switch by securely fitting the claw on the column switch into the groove on the column shaft. Then, remove the retaining pin and release the band clump pin.

When installing the removed column switch

Fig 1: Identifying Column Switch Assembly Retaining Pin And Groove

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

1. Using a wrench or similar tool, pinch and lift the band clump pin shown in the figure.
2. Install the column switch by securely fitting the claw on the column switch into the groove on the column shaft.
3. Release the band clump pin.

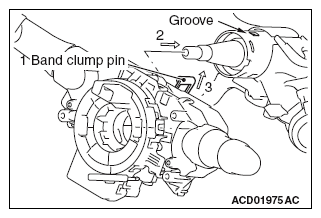

   Fig 2: Identifying Band Clump Pin And Groove

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
