Clock Spring

If any malfunction is found in the following inspections, replace the clock spring with a new one.

1. Check the connectors and protective tubes for damage and the terminal for deformation.
2. Check the case for damage.
3. Check that the continuity exists between the following connector terminals.
   • C-312 connector terminal 1 and C-304 connector terminal 1
   • C-312 connector terminal 2 and C-304 connector terminal 2
   • C-312 connector terminal 3 and C-304 connector terminal 3
   • C-312 connector terminal 5 and C-304 connector terminal 5
   • C-312 connector terminal 6 and C-304 connector terminal 6
   • C-312 connector terminal 7 and C-304 connector terminal 7

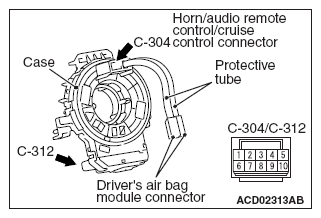

     Fig 1: Identifying Driver Air Bag Module Connector And Horn/Audio Remote Control/Cruise Control Connector

     Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
4. As shown in the Figure, connect the circuit tester to special tool extra fine probe (MB992006) and check to see that there is a charge between the terminals.

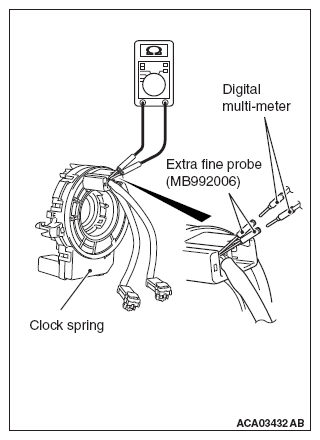

   Fig 2: Checking Continuity Between C-312 Connector Terminal 1 And C-304 Connector Terminal 1

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
