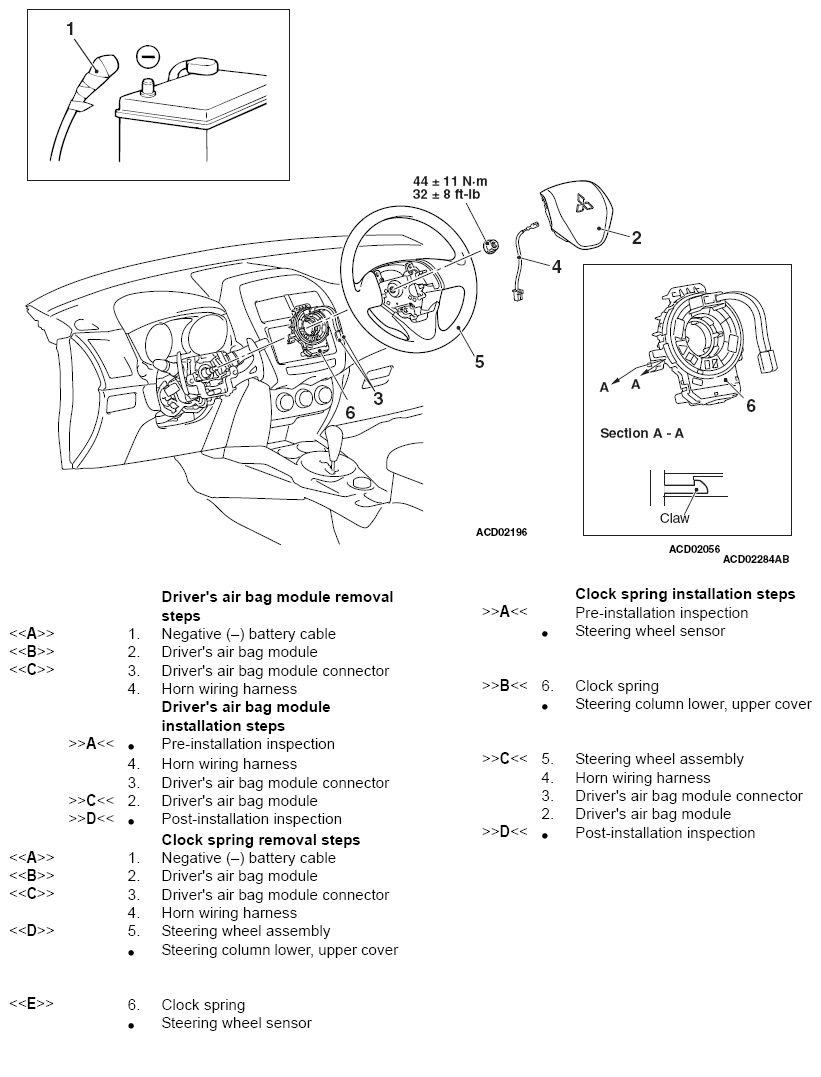

Removal And Installation: Notes
WARNING:
- Never attempt to disassemble or repair the air bag modules or clock spring. If faulty, replace it.
- Do not drop the air bag modules or clock spring or allow contact with water, grease or oil. Replace it if a dent, crack, deformation or rust is detected.
- The air bag modules should be stored on a flat surface with the pad cover facing upward. Do not place anything on top of it.
- Do not expose the air bag modules to temperatures over 93°C (200°F).
- After the air bag deployment, replace the air bag module with a new one. Also, check the clock spring, and replace with a new part if there is an abnormality.
- Wear gloves and safety glasses when handling air bags that have already deployed.
- Certain components of this vehicle, such as air bag modules and seat belt pre-tensioners, may contain perchlorate materials. Before deployment and/or disposal of these components, review and comply with all applicable Federal, state and local regulations.
- An undeployed air bag module should only be disposed of in accordance with the procedures (Refer to DISPOSAL OF UNDEPLOYED AIR BAG MODULES ).
- When removing and installing the front passenger seat, be sure to carry out accuracy check of the occupant classification sensor after the seat has been installed in the vehicle (ON-VEHICLE SERVICE ).
- After the installation, perform a calibration for the ASC-ECU to learn the steering wheel sensor neutral point. (Refer to STEERING WHEEL SENSOR CALIBRATION ).
Required Special Tools:
- MB990784: Ornament Remover
- MB990803: Steering Wheel Puller
- MB991958 Scan Tool (M.U.T.-III Sub Assembly)
- MB991824: Vehicle Communication Interface(V.C.I.)
- MB991827: M.U.T.-III USB Cable
- MB991910: M.U.T.-III Main Harness A
- MB992006: Extra Fine Probe
