<< C >> Driver's Air Bag Module Connector Removal

Use the flat-tipped screwdriver to pull out the locking button of wiring harness side connector, and release the lock.

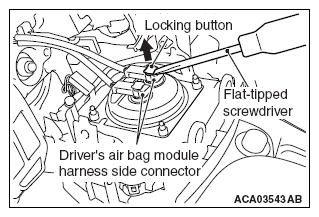

Fig 1: Removing Driver Air Bag Module Connector
G09671684Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
