DTC B1402: Driver's Air Bag Module (1st Squib) System (Shorted to Squib Circuit Ground); DTC B1482: Driver's Air Bag Module (2nd Squib) System (Shorted to Squib Circuit Ground): Notes

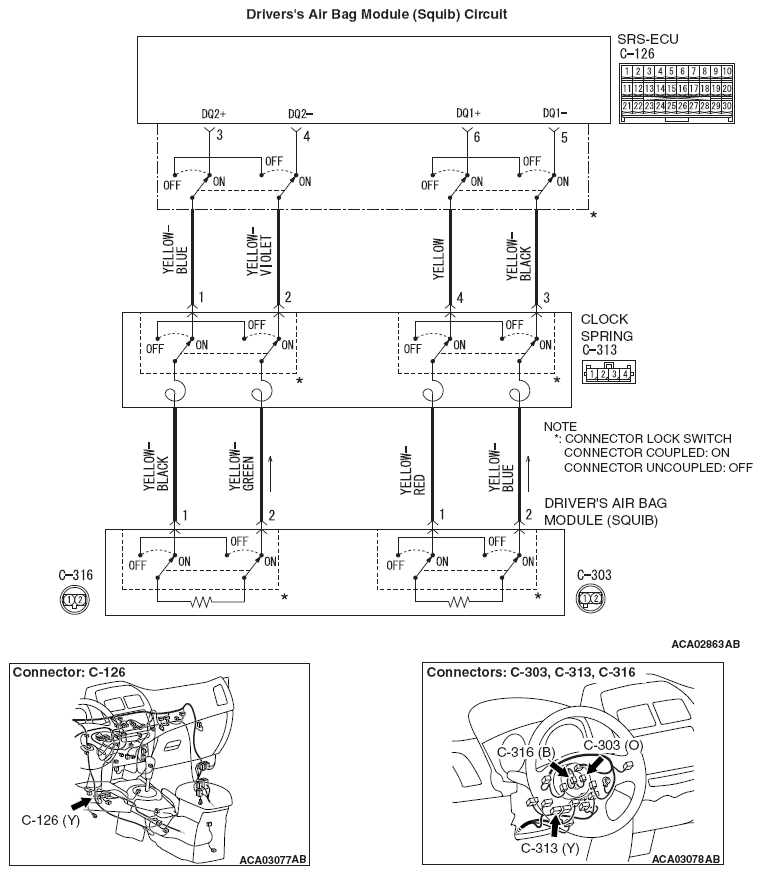

Fig 1: Driver Air Bag Module (Squib) Circuit Schematic Wiring Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION:

• If DTC B1402 < 1st squib > or B1482 < 2nd squib > is stored in the SRS-ECU, always diagnose the CAN main bus line.
• When DTC B1402 is stored in the following diagnosis, check the 1st squib circuit. When DTC B1482 is stored, check the 2nd squib circuit.
