DTC B1428: Side Impact Sensor (Front: RH) Communication Error; DTC B1429: Side Impact Sensor (Front: RH) Communication Impossible: Notes

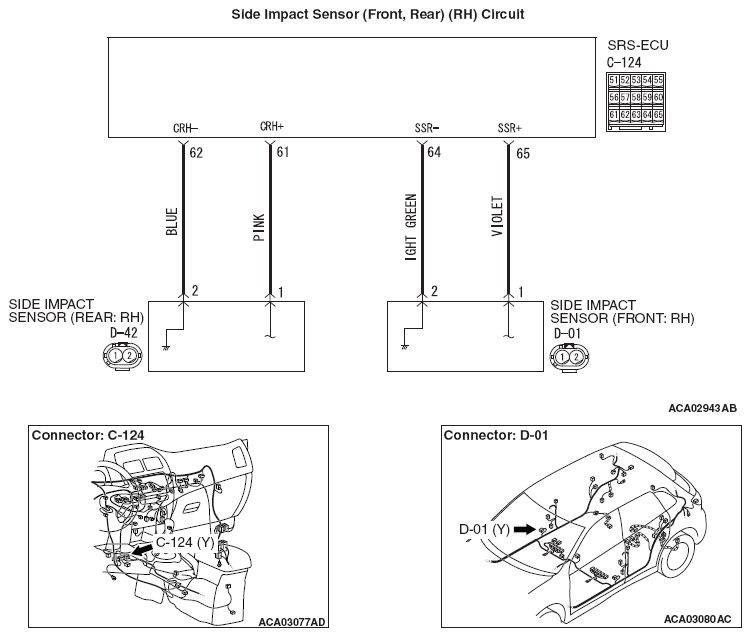

Fig 1: Side Impact Sensor (Front) Circuit Wiring Diagram (RH)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: If DTC B1428 or B1429 is set in the SRS-ECU, always diagnose the CAN main bus line.
