DTC B1440: Curtain Air Bag Module (RH) (Squib) System (Short Circuit between Squib Circuit Terminals): Notes

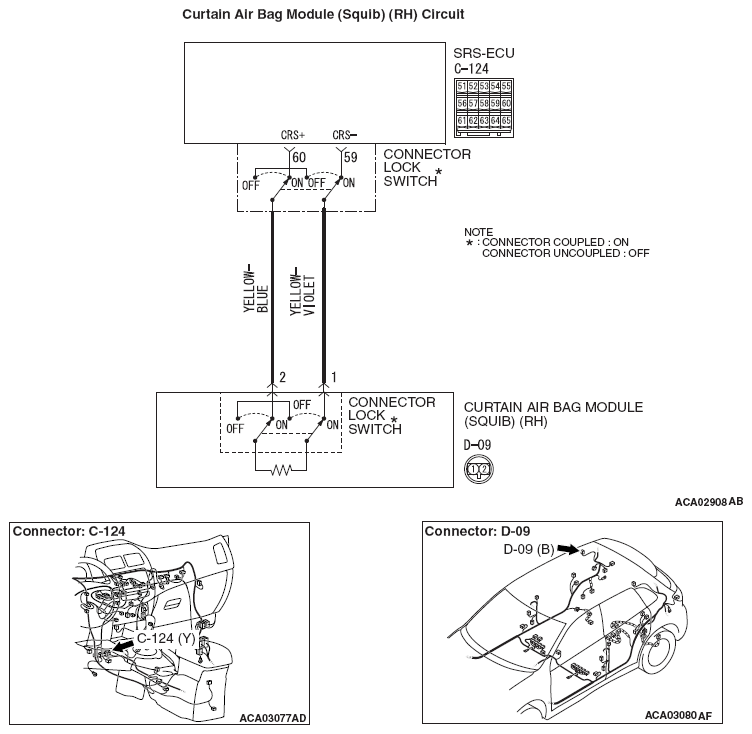

Fig 1: Curtain Air Bag Module (Squib) Circuit Wiring Diagram - RH

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: If DTC B1440 is set in the SRS-ECU, always diagnose the CAN main bus line.
