DTC B1441: Curtain Air Bag Module (RH) (Squib) System (Squib Circuit Open): Notes

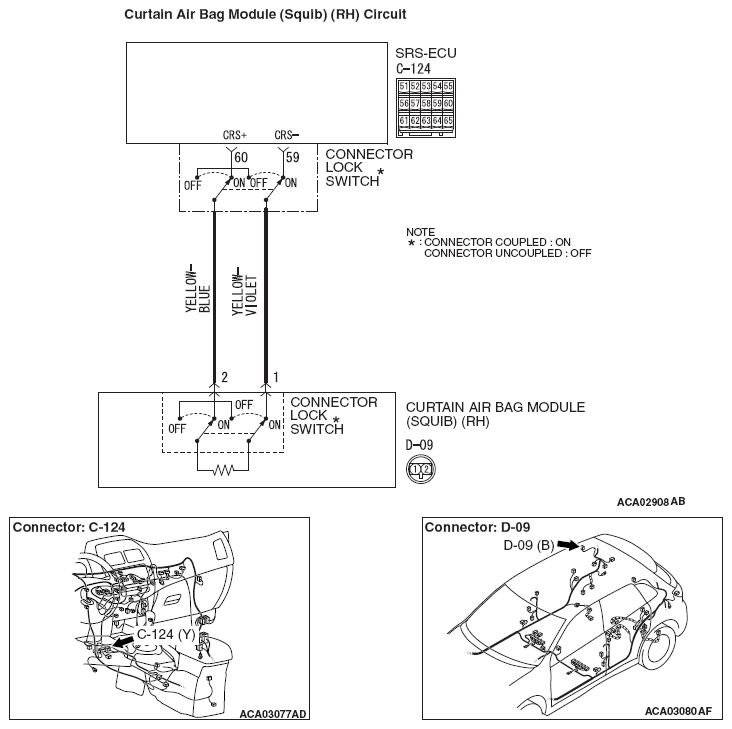

Fig 1: Curtain Air Bag Module Circuit Wiring Diagram (RH)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: If DTC B1441 is set in the SRS-ECU, always diagnose the CAN main bus line.
