>> A << Steering Lock/Steering Lock Bracket/Steering Lock Bolt Installation

Secure the steering lock bracket to the steering lock with steering lock bolt (upper). Tighten the steering lock bolt until its head is broken off.
Insert the steering lock into the tip of the column shaft, fit the protrusion of the steering lock to the hole of the steering column shaft, install the steering lock and tighten the steering lock bolt (lower) until its head is broken off.

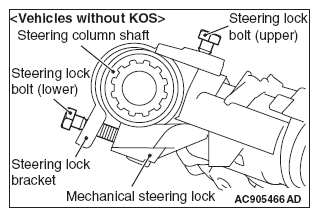

Fig 1: Securing Steering Lock Bracket To Steering Lock (Vehicles Without KOS)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

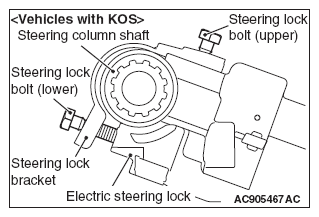

Fig 2: Securing Steering Lock Bracket To Steering Lock (Vehicles With KOS)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: As for the mechanical steering lock for vehicles with CVT, connect the body side wiring harness connector to the steering lock solenoid connector. Do not connect the harness connector to the steering lock solenoid dummy connector. As for the mechanical steering lock for vehicles with M/T, connect the body side wiring harness connector to the steering lock solenoid dummy connector.

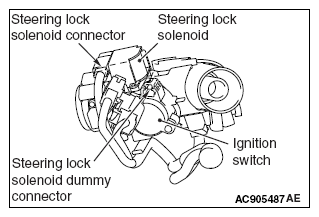

Fig 3: Identifying Steering Lock Solenoid, Connector And Ignition Switch
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
