Removal And Installation: Notes

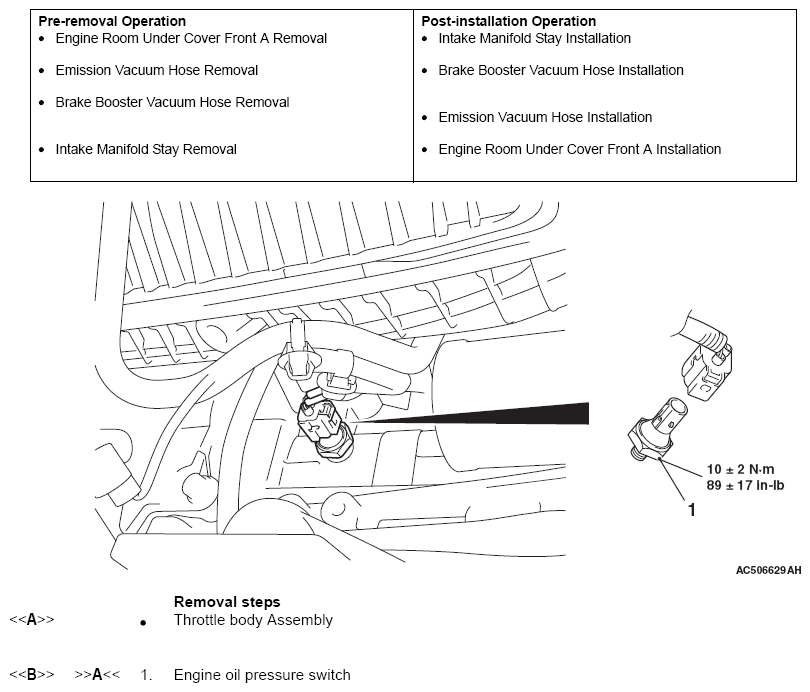

Fig 1: Removing/Installing Engine Oil Pressure Switch Components With Torque Specification
G09668350Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
