Special Tools

Tool Tool number and name Supersession Application

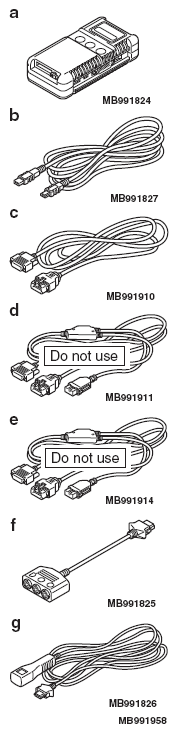

G08303312
 MB991958
  1. a: MB991824
  2. b: MB991827
  3. c: MB991910
  4. d: MB991911
  5. e: MB991914
  6. f: MB991825
  7. g: MB991826

Scan tool (M.U.T.-III sub assembly)
  1. a: Vehicle communication interface (V.C.I.)
  2. b: M.U.T.-III USB cable
  3. c: M.U.T.-III main harness A (Vehicles with CAN communication system)
  4. d: M.U.T.-III main harness B (Vehicles without CAN communication system)
  5. e: M.U.T.-III main harness C (for Daimler Chrysler models only)
  6. f: M.U.T.-III measurement adapter
  7. g: M.U.T.-III trigger harness
 MB991824-KIT
NOTE: G: MB991826 M.U.T.-III Trigger Harness is not necessary when pushing V.C.I. ENTER key.
CAUTION: For vehicles with CAN communication, use M.U.T.-III main harness A to send simulated vehicle speed. If you connect M.U.T.-III main harness B instead, the CAN communication does not function correctly.
Encrypted code registration
G08303313
 MB991223 Harness set
  1. a: MB991219 Test harness
  2. b: MB991220 LED harness
  3. c: MB991221 LED harness adapter
  4. d: MB991222 Probe
 General service tools Making voltage and resistance measurement during troubleshooting
  1. a: Connector pin contact pressure inspection
  2. b: Power circuit inspection
  3. c: Power circuit inspection
  4. d: Commercial tester connection
G08303314
 MB992006
Extra fine probe		 - Making voltage and resistance measurement during troubleshooting
