Transaxle Mounting Insulator Stopper Installation

Install the transaxle mounting insulator stopper as shown in the illustration.

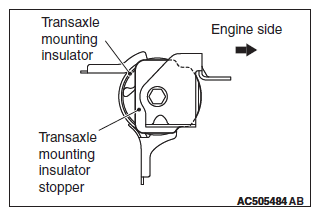

Fig 1: Installing Transaxle Mounting Insulator Stopper
G09626197Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
