CVT Assembly Harness Connector Disconnection

While pressing A in the illustration, turn B counterclockwise to unlock the CVT assembly connector, and disconnect the connector.

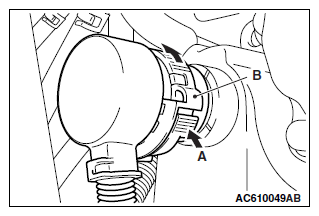

Fig 1: Disconnecting CVT Assembly Harness Connector
G09626190Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
