Exhaust Manifold Bracket Installation

Make sure that the exhaust manifold bracket is closely contacted with the exhaust manifold and transfer assembly, and then temporarily tighten the bolts.
Tighten bolt A on the exhaust manifold side in the illustration to the specified torque.
Tightening torque: 20 ± 5 N.m (15 ± 3 ft-lb)
Tighten bolt B on the transfer assembly side in the illustration to the specified torque.
Tightening torque: 20 ± 5 N.m (15 ± 3 ft-lb)

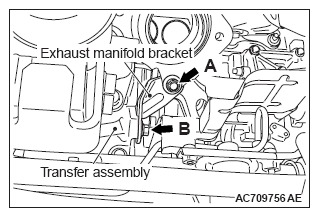

Fig 1: Removing/Installing Transfer Assembly Components With Torque Specification (AWD)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
