Emergency Key Removal

With the lever being pressed in the arrow direction of the illustration, pull out the emergency key from the keyless operation key and remove it.

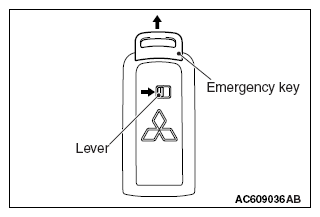

Fig 1: Locating Emergency Key Service Points
G09627903Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
